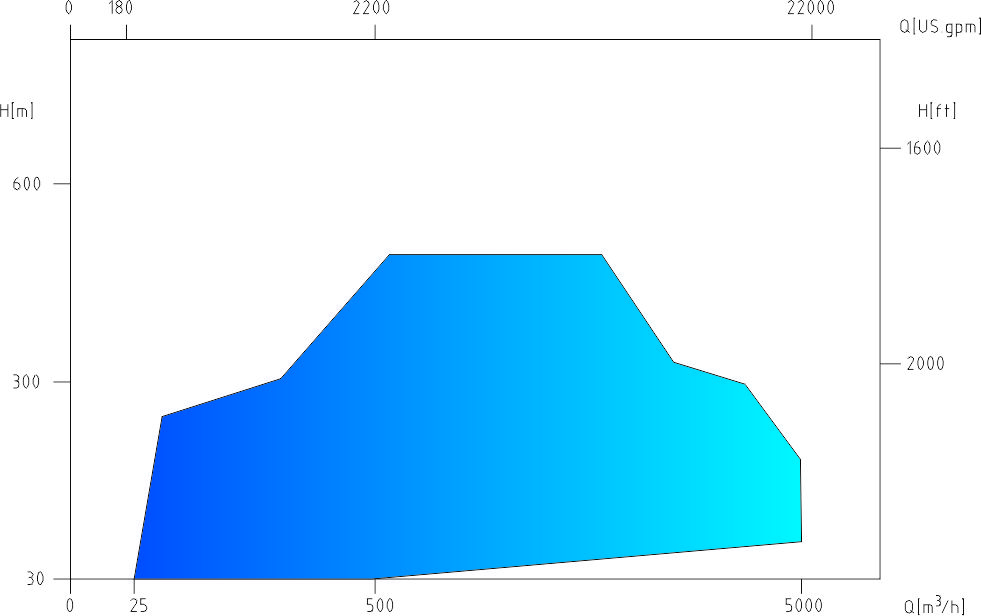

Flow rate: Q ~5000 m3/h
Head: H ~ 480m
Temperature: T -80~+450℃
Design pressure: P ~10MPa
Petroleum refining / petrochemical and chemical industry / petroleum, liquefied petroleum gas and other media not containing solid particles / especially suitable for transporting high temperature and high pressure, flammable, explosive or toxic liquids

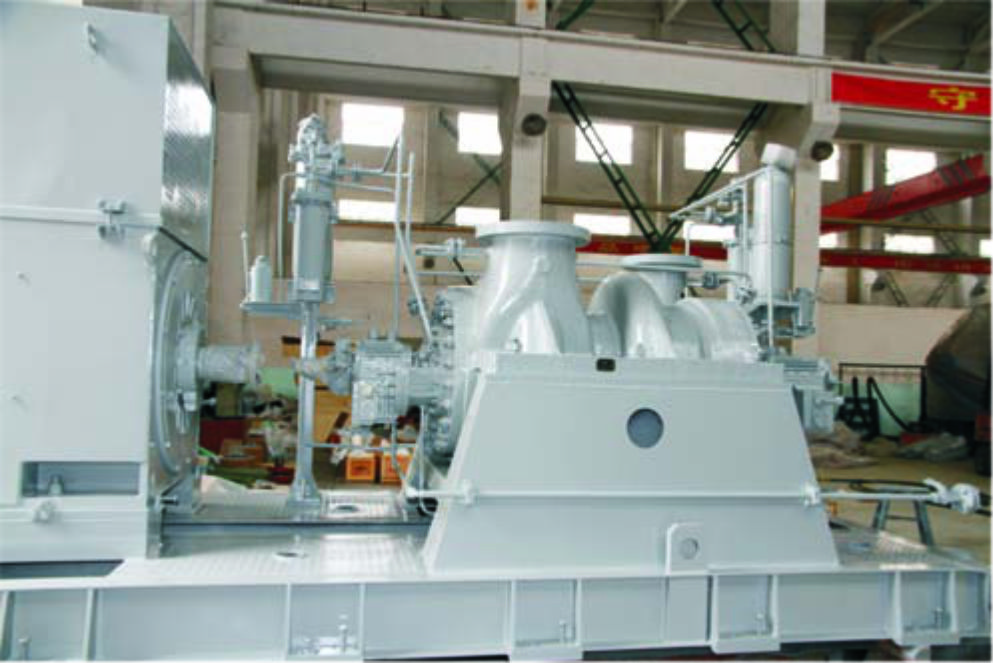

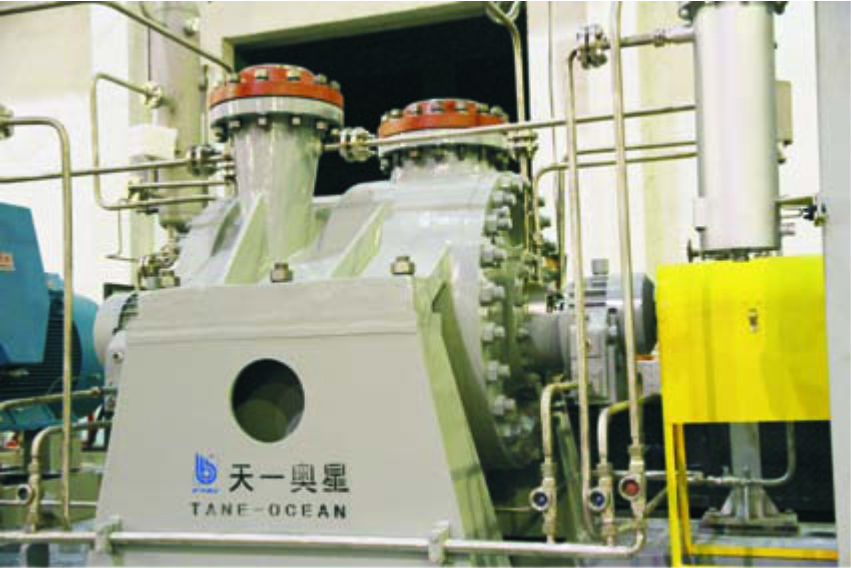

The pump has a horizontal, radially split, single-stage or two-stage (three-stage or four-stage can be used in special cases), centerline-mounted, and between bearing structure. Both the suction opening flange and the discharge opening flange of the pump are on the casing, and both face upwards vertically. The shaft sealing chamber and the casing cover are cast into one, which can contain various mechanical seals. An optional water-cooled chamber jacket is cast outside the shaft sealing chamber.
